Wheel stops that end the bay before the footpath.
Recycled rubber wheel stops from 550 mm to 2 m, with reflective chevrons, set back to the AS/NZS 2890.1 distance. New stops and replacements.
- 620 mm
- Setback from a kerb 150 mm or lower, front in
- 820 mm
- Setback from a higher kerb or a wall
- 1650 mm
- Standard length. 550 mm to 2 m available
Nextage supplies and installs wheel stops in retail car parks across Australia: new stops where bays have none, and replacements for stops that are broken, loose or in the wrong place. Our standard is a 1650 mm recycled rubber stop, 100 mm high with reflective chevrons, set back to the AS/NZS 2890.1 distance of 620 mm from a kerb 150 mm or lower for front in parking, so a car stops before its overhang reaches the footpath or the building.
The problem
- Cars overhang the kerb and block the footpath in front of the store.
- Broken or loose wheel stops turn into trip hazards of their own.
- Stops set at the wrong distance let bumpers reach walls and shopfronts.
What's included
- A count of every bay and every existing stop, with its condition
- New wheel stops where bays have none
- Broken, loose or misplaced stops lifted and replaced
- Each stop set back to the AS/NZS 2890.1 distance for that bay
- Before and after photos of the car park
Public liability insurance: $20 million.
Setbacks
Where each stop sits

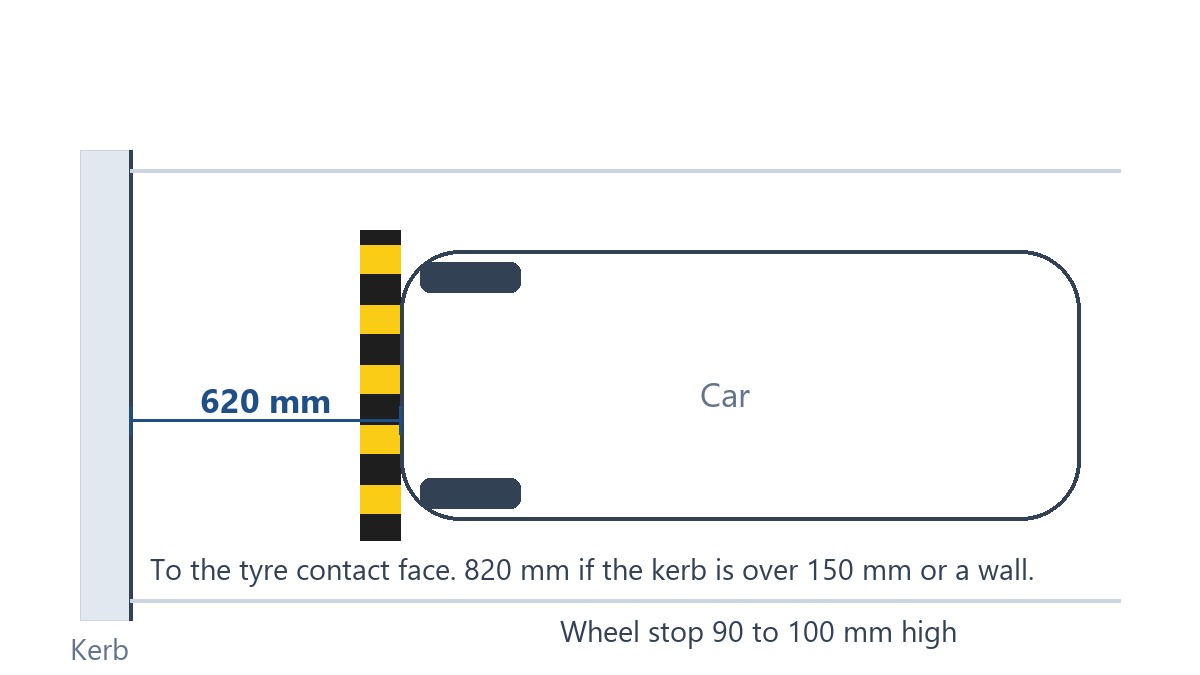

AS/NZS 2890.1 measures from the front of the bay to the face the tyre touches.
Front in, low kerb
620 mm where the kerb is 150 mm high or lower.
Front in, high kerb or wall
820 mm where the kerb is over 150 mm, or the bay faces a wall.
Rear in, low kerb
900 mm, because a car's rear overhang is longer.
Rear in, high kerb or wall
1100 mm.
Replacements
Existing stops at the wrong distance are moved when they are replaced.
Range
Lengths and types
The 1650 mm rubber stop suits a standard car bay. The others cover narrow bays, wide bays and trucks.
| Wheel stop | Length | Material | Use |
|---|---|---|---|
| Standard | 1650 mm | Recycled rubber, reflective chevrons | Car bays |
| Long | 2000 mm | Recycled rubber, reflective chevrons | Wide bays |
| Short | 900 mm | Rubber | Narrow and motorbike bays |
| Compact | 550 mm | Rubber | Single wheel, tight spaces |
| Accessible bay | 1650 mm | Recycled rubber | Accessible bays |
| Plastic | Standard length | UV resistant plastic, yellow | Covered car parks |
| Concrete | Standard length | Precast concrete | Sites already fitted with concrete |
| Truck and forklift | Sized to the vehicle | Heavy duty | Loading docks |
Every stop is fixed down through its mounting holes, on concrete or asphalt.
Specification
Our standard wheel stop
The 1650 mm recycled rubber stop, fitted to the standard's distances.
Setbacks are checked bay by bay on site, because kerb heights change along a car park.
- Length
- 1650 mm
- Height
- 100 mm, the top of the AS/NZS 2890.1 range
- Material
- Recycled rubber
- Visibility
- Yellow reflective chevrons moulded in
- Fixing
- Three fixing points, on concrete or asphalt
- Setback
- 620 mm or 820 mm front in, 900 mm or 1100 mm rear in
- Work
- New stops, and removal and replacement of existing ones
Supply and install
Supplied, ordered and fitted for you.
No products to order, fixings to buy or trades to chase. One call, and it arrives fitted.
Tell us the site and roughly how many. We walk it and come back with a measured quote.
We measure
A site walk sets what goes where, and how many.
We order
The right product, size and quantity, delivered to site.
We organise
Access, inductions and timing around your trading hours.
We install and photograph
Fitted by our crews, with before and after photos when it is done.
Often fitted in the same visit
A good fit
- Front in bays facing a footpath, a shopfront or a wall
- Car parks where old stops are broken, loose or missing
- One car park, or the same stop across a whole fleet
Not a fit
- A one off domestic driveway
- A full car park redesign with new bay layouts, which starts with a traffic engineer
Photos
Wheel stops we have fitted

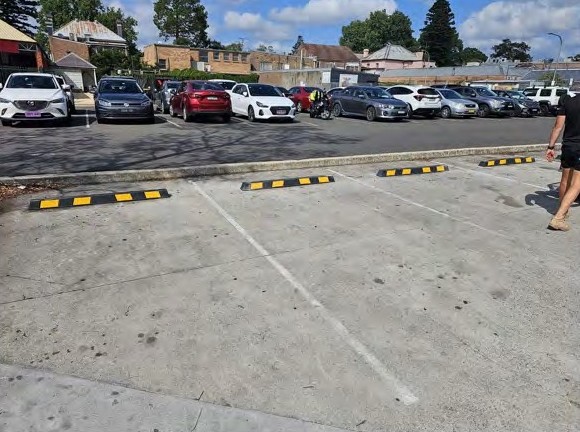

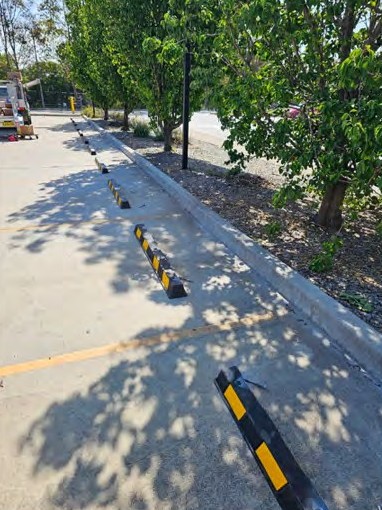

Yellow and black wheel stops across rows of bays, along a landscaped kerb and in front of a shopfront.
FAQ
About wheel stops
Rubber or concrete wheel stops?
Recycled rubber is our standard: reflective chevrons moulded in, three fixing points, and it does not chip or crack like concrete. Concrete stops are available where a site already uses them and wants them to match.
How far from the kerb does a wheel stop go?
For front in parking at a kerb 150 mm or lower, AS/NZS 2890.1 puts the face the tyre touches 620 mm from the front of the bay. At a higher kerb or a wall it is 820 mm.
Is it different for rear in parking?
Yes. A car's rear overhang is longer, so the setback is 900 mm, or 1100 mm at a higher kerb or a wall.
How high are they?
Our standard rubber stop is 100 mm high, the top of the 90 to 100 mm range AS/NZS 2890.1 sets.
What lengths are there?
1650 mm is standard for a car bay. We also fit 2000 mm, 900 mm and 550 mm stops, plastic stops, accessible bay stops and truck stops.
Do you replace old wheel stops?
Yes. Broken, loose or misplaced stops are lifted and replaced, and moved to the right distance while we are there.
Can we start with one car park?
Yes. One car park is enough. The same stop and setbacks can then go in at your other sites.
