Steel bollards between the car park and the glass.
Steel bollards from 90 mm to 220 mm, inground, bolted down or removable, plus flexible and shock absorbing bollards. Our standard is a 90 mm galvanised post in safety yellow.
- Domed cap and reflective red band
- Galvanised steel, powder coated safety yellow
- 90 to 220 mm
- Diameters, inground or bolted down
- 900 mm
- Standard height above ground
- 3.5 mm
- Standard galvanised steel wall
- 2 years
- Warranty on the standard bollard
Nextage supplies and installs bollards across Australia along shopfront glass, entries, pickup bays and walkways, where a car nosing into a bay could reach the building or the people beside it. Steel bollards from 90 mm to 220 mm protect; flexible bollards guide traffic and spring back when hit. Our standard is a 90 mm galvanised steel post, 900 mm above ground, powder coated safety yellow with a reflective band. Our installed count is more than 2,000 bollards at more than 300 sites.
The problem
- Nose in parking points cars straight at the glass, the entry or the pickup window.
- A car that rides over a wheel stop has nothing between it and the shopfront.
- Bollards bought store by store end up different heights, colours and spacings.
What's included
- A site walk to mark each bollard and check the slab and the services under it
- The bollard that suits the site: size, mounting and finish
- Inground posts core drilled and set, or surface mounted posts bolted down
- Installation by induction ready crews, after hours where trading needs it
- Before and after photos of every bollard line
Public liability insurance: $20 million.
Options
Bollards we fit
The standard post suits most shopfronts. Where it does not, the site walk sets the bollard that does.
Inground
Core drilled and set into the ground. Our standard 90 mm post goes in this way.
Surface mounted
Base plated and bolted down, where the slab or the services under it rule out drilling.
Removable
Lift out posts where a route has to open for deliveries or maintenance.
Larger diameters
114, 140, 165 and 220 mm posts where bigger vehicles move close to the building. Sizes below.
Heights
Set to the site, where the standard 900 mm above ground does not suit.
Finishes
Safety yellow powder coat as standard, galvanised, stainless steel or other colours.
Reflective bands
Reflective bands near the top, so the bollard shows up in headlights.
Flexible bollards
Polyurethane or plastic posts 450 to 900 mm high that bend and rebound, for guiding traffic rather than stopping it.
Shock absorbing
90 mm and 140 mm steel posts on a surface mount base with an internal shock absorbing mechanism.
Fold down
Spring loaded posts that fold flat for access and stand back up.
Key and padlock sleeves
Removable 90 mm posts in a keylock or padlock sleeve, so a route can be opened and locked again.
Spacing
At least 1000 mm clear where a line crosses an accessible path, the minimum path width AS 1428.1 sets.
Sizes
Every size, inground or bolted down
Pick the diameter for the vehicles and the risk. Each one is available set in the ground or bolted to the surface.
| Diameter | Inground | Bolted down | Removable |
|---|---|---|---|
| 90 mm, our standard | Yes | Yes | Yes |
| 114 mm | Yes | Yes | Yes |
| 140 mm | Yes | Yes | Yes |
| 165 mm | Yes | Yes | Yes |
| 220 mm | Yes | Yes | Yes |
| Other sizes | To order | To order | To order |
| Flexible, 450 to 900 mm high | No | Yes | Some models |
| Shock absorbing, 90 or 140 mm | No | Yes | No |
Heights, wall thickness and finish are set for each site and named in the quote. Bolted down means base plated and fixed to the slab.
Specification
Our standard bollard
The 90 mm inground bollard, from its product sheet.
Other sizes, mountings and finishes are set on the site walk and written into the quote.
- Material
- Galvanised steel, 3.5 mm wall
- Diameter
- 90 mm outside diameter
- Length
- 1200 mm: 900 mm above ground, 300 mm below
- Weight
- 12 kg
- Finish
- Powder coated safety yellow, reflective red band under a domed cap
- Mounting
- Core drilled and set into the ground
- Warranty
- Two years
- Rating
- Vehicle impact protection. Not a certified crash rated bollard
Supply and install
Supplied, ordered and fitted for you.
No products to order, fixings to buy or trades to chase. One call, and it arrives fitted.
Tell us the site and roughly how many. We walk it and come back with a measured quote.
We measure
A site walk sets what goes where, and how many.
We order
The right product, size and quantity, delivered to site.
We organise
Access, inductions and timing around your trading hours.
We install and photograph
Fitted by our crews, with before and after photos when it is done.
Often fitted in the same visit
A good fit
- Shopfronts facing nose in parking
- Store entries, pickup windows and drive thru lanes
- Pedestrian edges between a car park and a footpath
- Plant, meters and cabinets beside a vehicle route
- One store, or the same bollard across a whole fleet
Not a fit
- Certified crash rated or anti ram raid security work (IWA 14, PAS 68 or ASTM F2656)
- A one off domestic driveway
Photos
Bollards we have installed

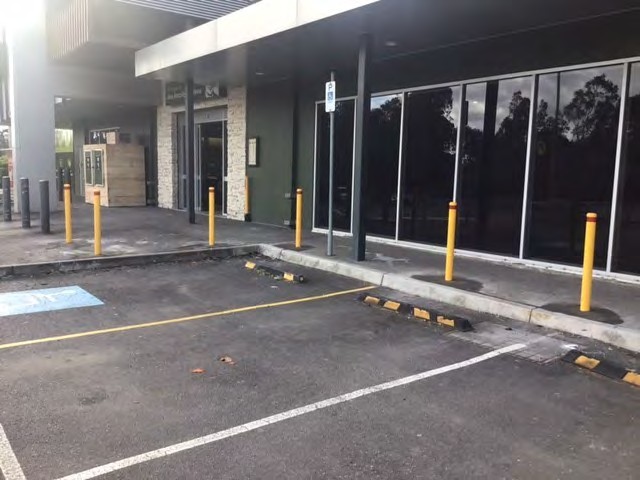

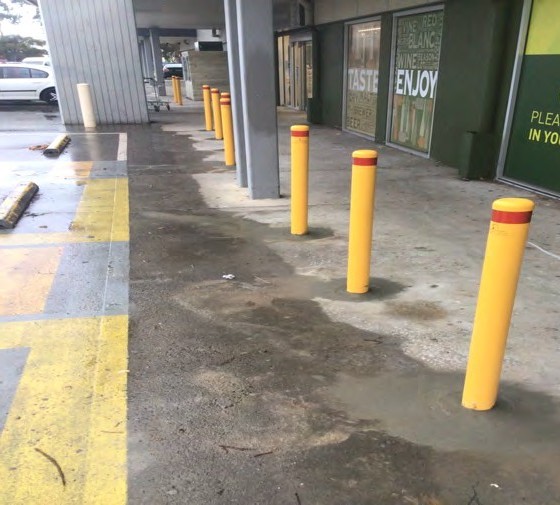

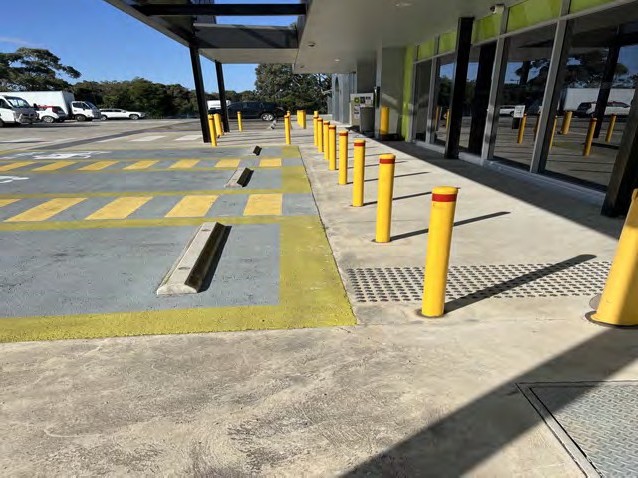

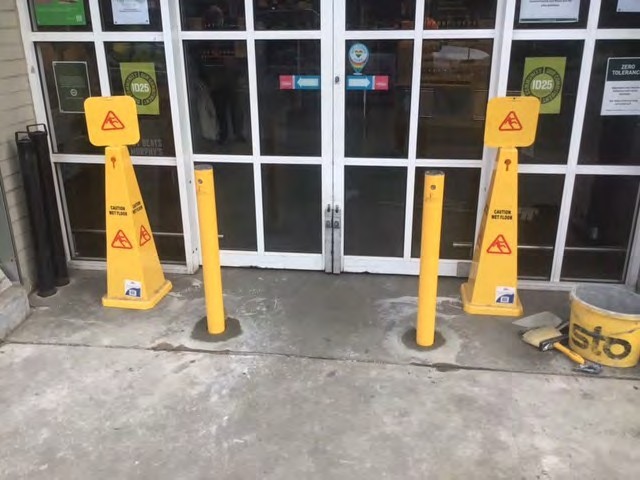

Inground bollards along shopfront glass, pickup windows, a store entry and a row of parking bays, each in safety yellow with a red band at the top.
FAQ
About our bollards
Steel or flexible bollards?
Steel bollards protect: they are there to stop a car reaching glass, a door or people. Flexible bollards guide: they mark a lane or a keep clear area and bend back when a car hits them. Most shopfronts need steel; most lane marking needs flexible.
What sizes do you supply?
90 mm as standard, plus 114, 140, 165 and 220 mm, and other sizes to order. Every size can be set in the ground or bolted down, and heights and finishes are set for the site.
How tall is the standard bollard?
It is 1200 mm long. 900 mm stands above the ground and 300 mm is set into it.
What is the standard bollard made of?
Galvanised steel with a 3.5 mm wall and a 90 mm outside diameter, powder coated safety yellow with a reflective red band at the top. Each one weighs 12 kg.
Can bollards be surface mounted?
Yes. Where the slab or the services under it rule out drilling, the bollard is base plated and bolted down instead.
Will a bollard stop a ram raid?
Not these. They are vehicle impact protection against an accidental hit, such as a car rolling forward out of a bay. Stopping a deliberate ram raid needs a bollard crash tested to IWA 14, PAS 68 or ASTM F2656, which is different work.
How far apart do they go?
Close enough to stop a car, and at least 1000 mm clear wherever the line crosses an accessible path, the minimum width AS 1428.1 sets. The spacing is fixed on the site walk.
What warranty comes with them?
Two years on the standard bollard. Other bollards carry the warranty named in the quote.
Can we start with one store?
Yes. One line at one store is enough. The same bollard can then go in at your other stores.
