Car park and road signs where drivers need them.
Speed, crossing, speed hump, warning, regulatory and custom signs for car parks and private roads: Class 1 reflective aluminium, on posts with brackets.
- 450 by 600 mm
- Standard speed sign
- Class 1
- Reflective sheeting on aluminium
- 60 mm
- Post diameter, two brackets a sign
Nextage supplies and installs car park and road signs at retail sites across Australia: speed limit, pedestrian crossing, speed hump, warning, regulatory and custom signs. Our standard speed sign is 450 by 600 mm, 1.6 mm aluminium with Class 1 reflective sheeting, laid out to the R4-1 speed limit sign in AS 1742.4, on a 60 mm post with two brackets. Posts are surface mounted or set in the ground, with one sign or two back to back.
The problem
- Drivers come off the road at road speed with nothing telling them to slow down.
- Crossings and speed humps with no warning sign catch drivers out.
- Signs bought store by store end up different sizes, heights and fixings.
What's included
- A site walk to place each sign where drivers will see it in time
- Speed, pedestrian crossing and speed hump signs
- Poles with brackets, for one sign or two
- Surface mounted poles, or poles set in the ground
- Before and after photos of the car park
Public liability insurance: $20 million.
Signs and poles
What we put up
The sign and the pole are chosen together on the site walk.
Speed signs
At the entry and along aisles, so drivers know the limit.
Pedestrian crossing signs
At each marked crossing between the car park and the store.
Speed hump signs
The W5-10 hump warning sign, where a hump is hard to see.
Single sign poles
One sign on a pole with brackets.
Double sign poles
Two signs on one pole, such as a crossing sign over a hump sign.
Surface or in ground
Poles surface mounted where the ground cannot be dug, or set in the ground.
Range
Signs we put up
Speed signs come in every car park limit. Other signs are sized to where they are read from.
| Sign | Typical size | Face | Code or standard |
|---|---|---|---|
| Speed limit, 5 to 40 km/h | 450 by 600 mm | Class 1 reflective, 1.6 mm aluminium | R4-1, AS 1742.4 |
| Speed hump warning | Diamond warning sign | Class 1 reflective | W5-10 |
| Pedestrian crossing | Warning sign | Class 1 reflective | AS 1742 series |
| Road warning and guide | Sized to the reading distance | Class 1 reflective | AS 1742 series |
| Regulatory and prohibition | Sized to the reading distance | Class 1 reflective | AS 1742 series |
| Custom car park signs | Sized to the reading distance | Printed to your wording | Site specific |
Road authority approval is needed before any sign goes on a public road.
Specification
What we fit
Car park traffic signs on poles with brackets.
Where a site has a traffic management plan, the signs follow it.
- Sign types
- Speed, pedestrian crossing, speed hump
- Signs per pole
- One or two
- Mounting
- Surface mounted pole, or pole set in the ground
- Posts
- 60 mm outside diameter
- Brackets
- Two per sign, or two back to back brackets for a pair of signs
- Face
- 1.6 mm aluminium, Class 1 reflective sheeting
- Standard
- AS 1742 series, manual of uniform traffic control devices
- Hump sign
- W5-10 hump warning sign
Supply and install
Supplied, ordered and fitted for you.
No products to order, fixings to buy or trades to chase. One call, and it arrives fitted.
Tell us the site and roughly how many. We walk it and come back with a measured quote.
We measure
A site walk sets what goes where, and how many.
We order
The right product, size and quantity, delivered to site.
We organise
Access, inductions and timing around your trading hours.
We install and photograph
Fitted by our crews, with before and after photos when it is done.
Often fitted in the same visit
A good fit
- Car park entries and long aisles
- Pedestrian crossings and speed humps that need a warning
- One car park, or the same signs across a whole fleet
Not a fit
- Signs on public roads, which the road authority controls
- Store branding and pylon signs, which the signage service covers
Photos
Signs we have put up

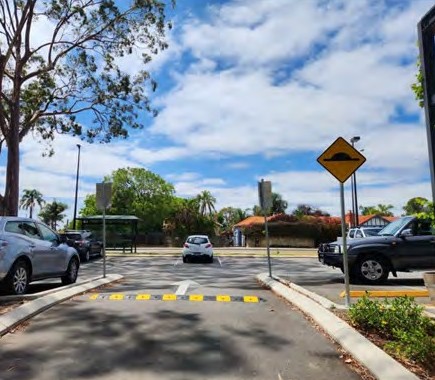

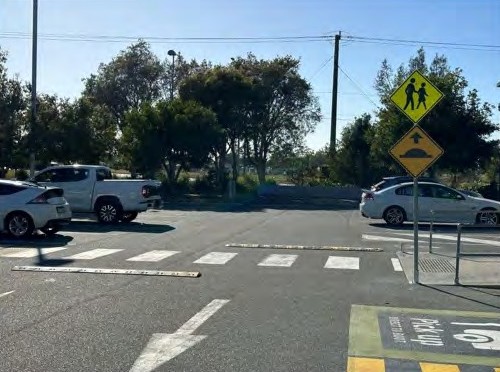

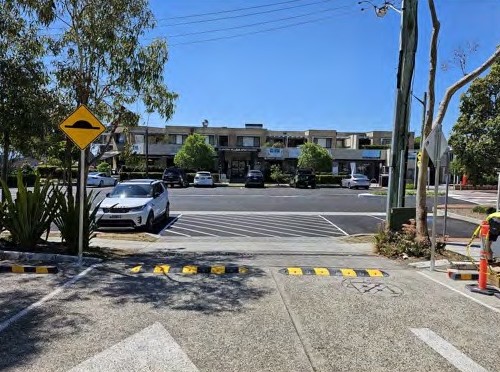

A crossing sign above a hump sign on one pole, and hump warning signs at car park entries.
FAQ
About car park and road signs
What size is a car park speed sign?
Our standard is 450 by 600 mm, 1.6 mm aluminium with Class 1 reflective sheeting, laid out to the R4-1 speed limit sign in AS 1742.4, from 5 km/h up.
Can you make custom car park signs?
Yes. Custom signs are printed to your wording and sized to where they are read from, alongside the standard traffic signs.
Which signs do you put up?
Speed signs, pedestrian crossing signs and speed hump warning signs, the signs a retail car park most often needs.
Can two signs share a pole?
Yes. A double sign pole carries two, such as a pedestrian crossing sign above a speed hump sign.
What if we cannot dig?
Then the pole is surface mounted instead of set in the ground.
Which standard do the signs follow?
The AS 1742 series, the Australian manual of uniform traffic control devices.
Can we start with one car park?
Yes. One car park is enough. The same signs can then go up at your other sites.
